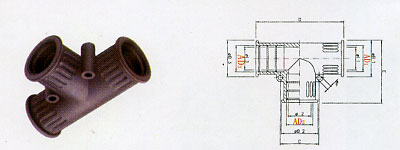

AD1/2/3	Φl1	Φl2	Φl3	ΦB1	ΦB2	ΦB2	D	E	C	F
适配软管外径尺寸	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
3×10.0	7	7	7	17.5	17.5	17.5	46.5	32.5	18.3	4
3×13.0	10	10	10	21	21	21	51	36	21	4
3×15.8	14	14	14	25	25	25	63	44	24.5	4
3×18.5	15	15	15	26.5	26.5	26.5	70.5	48.5	24.3	4
3×21.2	18	18	18	29.5	29.5	29.5	71	50	29.3	4
2×21.2/1×28.5	18	18	18	32	32	32	78	51	38.5	4
2×28.5/1×15.8	25.5	25.5	25.5	36.5	36.5	36.5	65	56	24.5	4
3×28.5	25.5	25.5	25.5	36.5	36.5	36.5	77	57.5	37	4
2×28.5/1×34.5	25.5	25.5	25.5	36.5	36.5	36.5	83.5	57.5	42	4
3×34.5	31.5	31.5	31.5	42.5	42.5	42.5	85	64	42	4
3×42.5	39.7	39.7	39.7	52.5	52.5	52.5	96	74.5	52.8	4
