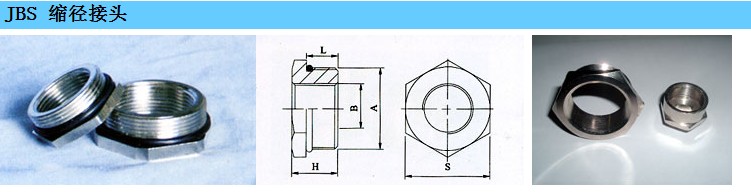

 缩径接头
|
|
|
外螺纹 |
内螺纹 |
高 |
尾长 |
扳手 |
|
A |
B |
H |
L |
S |
|
M24×1.5 |
M20×1.5 |
12 |
8 |
27 |
|
M27×2 |
M24×1.5 |
12 |
8 |
30 |
|
M30×2 |
M27×2 |
13 |
8 |
32 |
|
M33×2 |
M27×2 |
14 |
9 |
36 |
|
M36×2 |
M30×2 |
14 |
9 |
41 |
|
M36×2 |
M33×2 |
15 |
10 |
41 |
|
M42×2 |
M36×2 |
15 |
10 |
48 |
|
M48×2 |
M42×2 |
15 |
12 |
52 |
|
M56×2 |
M42×2 |
16 |
12 |
60 |
|
M60×2 |
M56×2 |
16 |
13 |
64 |
|
|
|
|
|
|
|
Pg9 |
Pg7 |
11 |
7 |
18 |
|
Pg11 |
Pg9 |
12 |
8 |
20 |
|
Pg13.5 |
Pg11 |
12 |
8 |
22 |
|
Pg16 |
Pg13.5 |
12 |
8 |
25 |
|
Pg21 |
Pg16 |
13 |
8 |
30 |
|
Pg29 |
Pg21 |
13 |
8 |
41 |
|
Pg36 |
Pg29 |
14 |
12 |
52 |
|
Pg42 |
Pg36 |
16 |
12 |
60 |
|
Pg48 |
Pg42 |
18 |
13 |
64 |
|
|
|
|
|
|
|
G3/8" |
G1/4" |
12 |
8 |
20 |
|
G1/2" |
G3/8" |
13 |
9 |
24 |
|
G3/4" |
G1/2" |
14 |
10 |
30 |
|
G1" |
G3/4" |
16 |
11 |
36 |
|
G1 1/4" |
G1" |
17 |
12 |
45 |
|
G1 1/2" |
G1 1/4" |
18 |
12 |
52 |
|
G2" |
G1 1/2" |
19 |
13 |
64 |
|
|
|
|
|
|
|
M16×1.5 |
M12×1.5 |
12 |
8 |
18 |
|
M20×1.5 |
M16×1.5 |
14 |
9 |
22 |
|
M25×1.5 |
M20×1.5 |
14 |
9 |
28 |
|
M32×1.5 |
M25×1.5 |
15 |
10 |
36 |
|
M40×1.5 |
M32×1.5 |
16 |
11 |
45 |
|
M50×1.5 |
M40×1.5 |
18 |
12 |
56 |
|
M63×1.5 |
M50×1.5 |
20 |
14 |
68 |
|
|
|
| |
|
